This tutorial provides guidelines and procedures to enable the user to use the Nexto Xpress I/O expansion modules through the CANopen communication protocol, a resource widely used in automation applications.
Components
Software: Mastertool IEC XE 3.34
PLC: XP340
Expansion Modules: XP101
Tutorial Sections
1. ARCHITECTURE
2. DEVELOPMENT
2.1. Electrical connection and manual dipswitch configuration
2.2. Adding expansion modules in MasterTool
2.3. Configuring CAN network parameters and expansion modules
2.4. Changing digital inputs and outputs
1. ARCHITECTURE

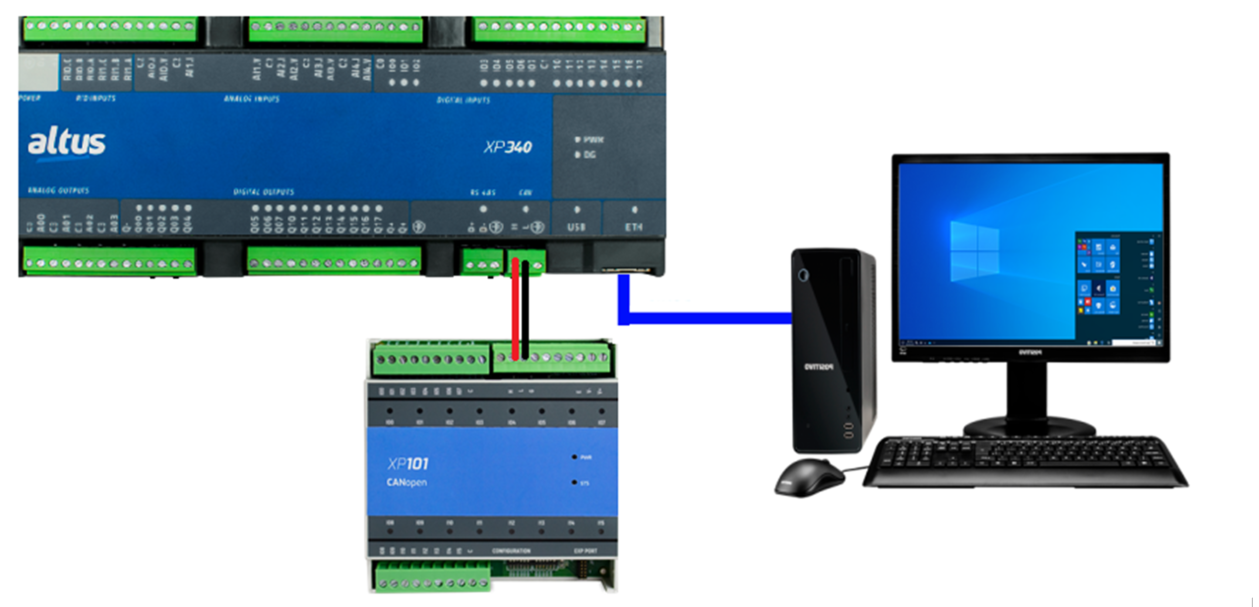

In the architecture of this tutorial, the H terminals of both expansions were connected to the H terminal of the XP340 CAN port and the L terminals of the expansions were connected to the L terminal of the Xpress. The controller's Ethernet port was also connected to the computer's Ethernet port.
2. DEVELOPMENT
This tutorial will show the steps to use the Nexto Xpress I/O expansions via the CANopen protocol. All steps for protocol insertion and expansion usage are illustrated, but it is important to have the Nexto Xpress Series Manual and the technical specifications document of the expansions on hand for consultation during the application stages. This document will guide you on installation and physical connection of the modules, programming, and configurations in MasterTool.
2.1. Electrical connection and manual dipswitch configuration
The expansions are powered by 24Vdc at the V+ and V- terminals, and the CAN network adapter connection to the PLC is made by connecting H terminals with H and L terminals with L.
Important: Both the electrical connection and the dipswitch configuration table can be found in the technical specifications document of the expansions, located in the Support and Downloads section on the Altus website.
https://www.altus.com.br/suporte/download/baixararquivo/AwQKVA==/2
2.1.1. Internal termination configuration

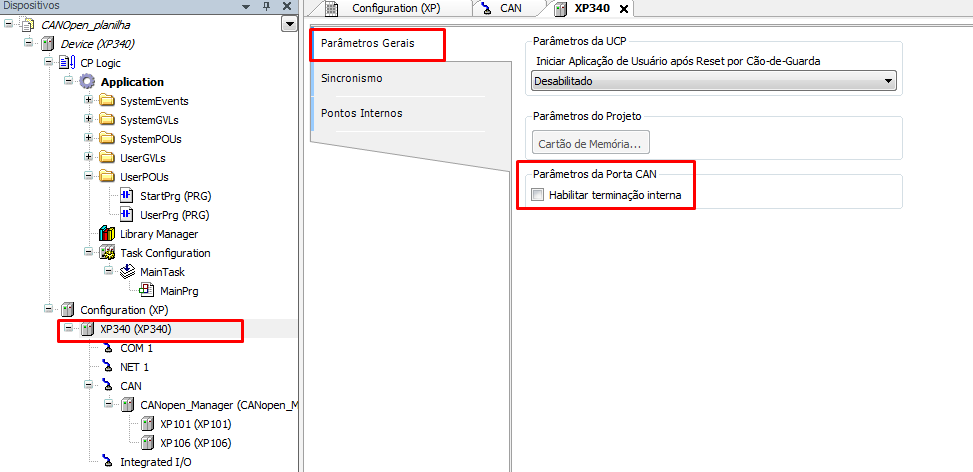

Regarding the internal termination switch, it should only be activated at the ends of the CAN network, that is, on the CanOpen_Manager and on the last communication adapter.
CanOpen_Manager
Adapter
The internal termination on the expansion modules is enabled via dipswitch SW2.5.
2.2. Adding expansion modules in MasterTool
The .eds files of the expansion modules are available in the download center on the Altus website, under the "software" category, with the series "Nexto Xpress" and function "I/O Modules".

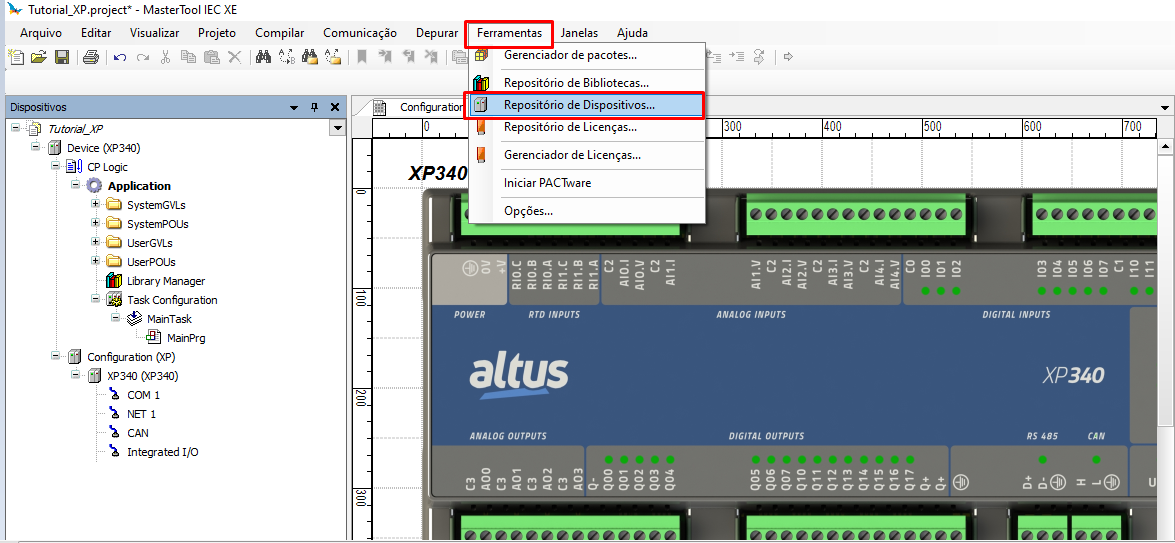

After installing the .eds files on your computer, to add them to MasterTool, go to Tools and then Device Repository.
Important: Starting with MasterTool version 3.61, the .eds files described below will already be included in the software.

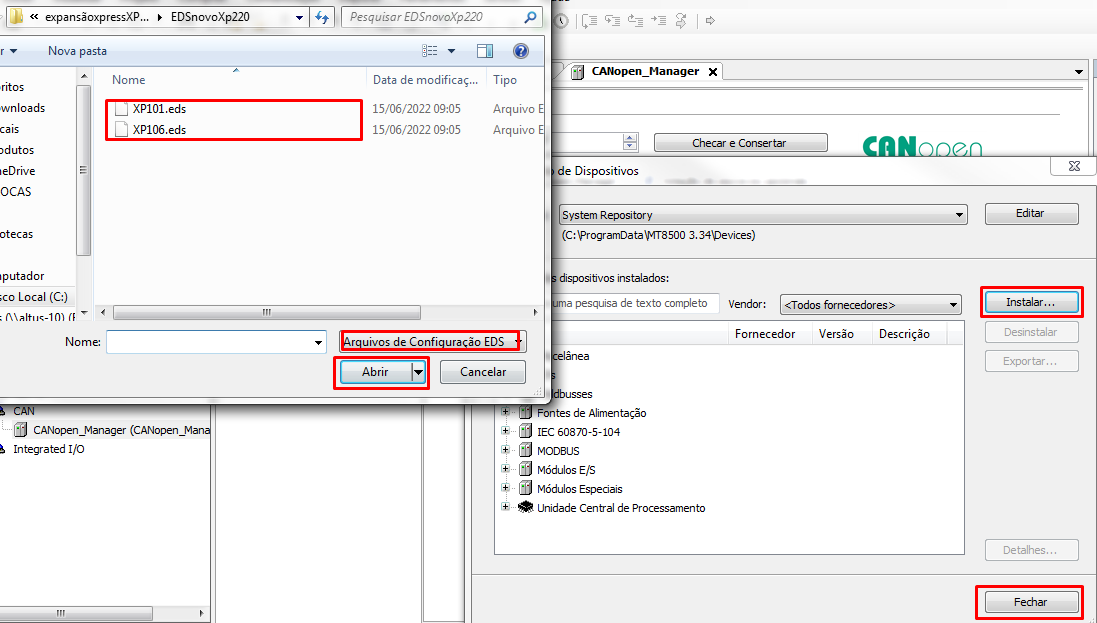

A new window will open. Click Install, select the expansion module files you are using, click Open, and then close this window.

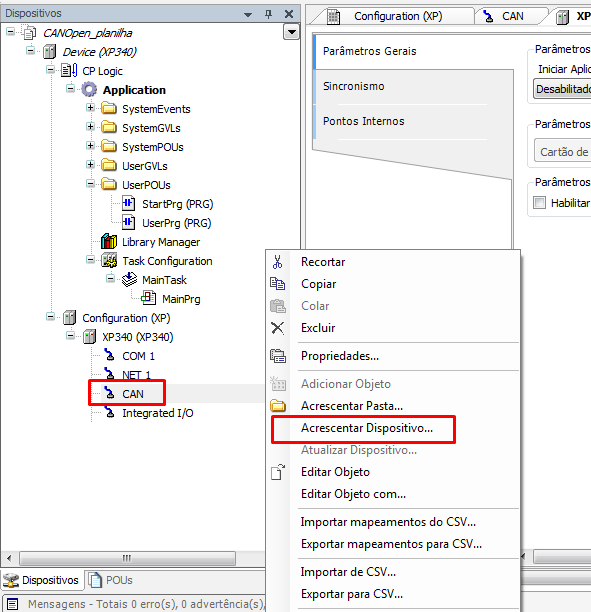

Now, right-click on CAN, and then click Add Device.

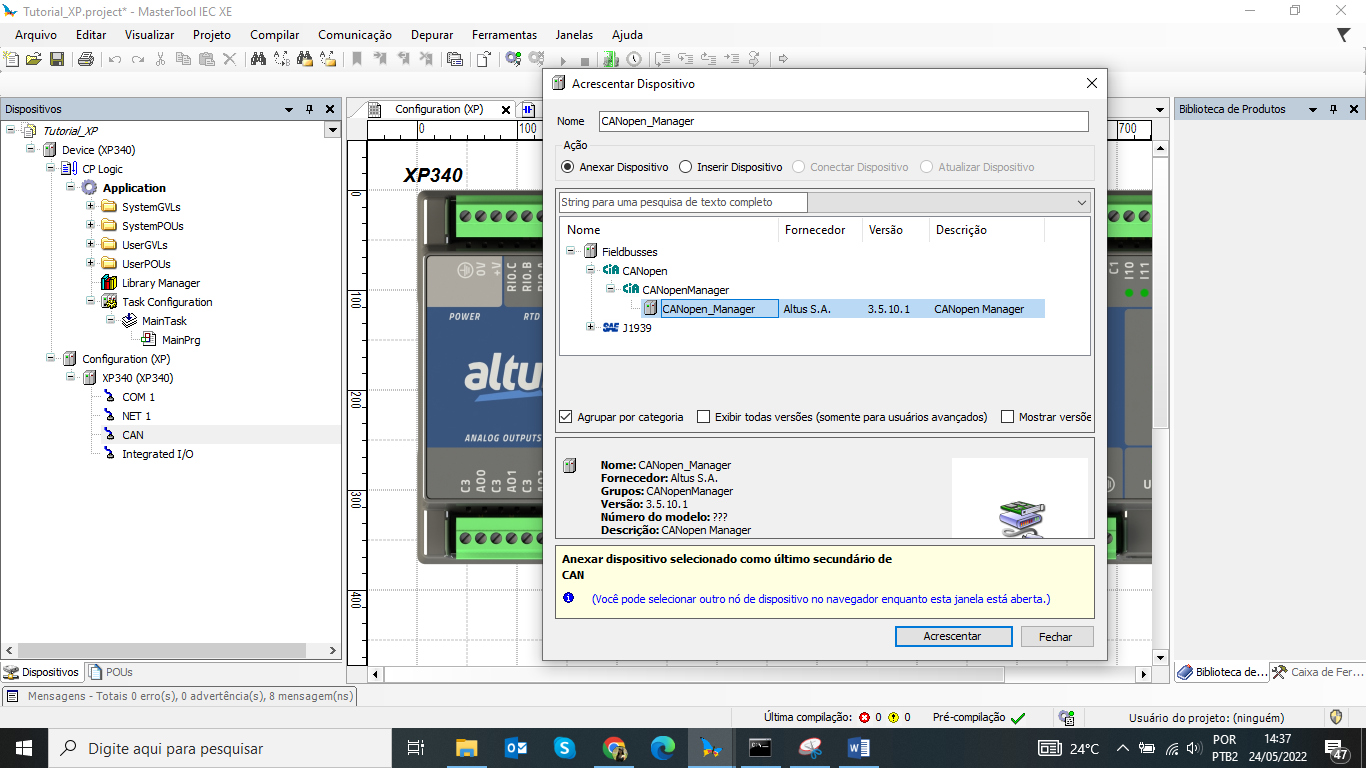

First, add the Manager, which will be the PLC.
After this, right-click on Manager and add the expansions one by one.
2.3. Configuring CAN network parameters

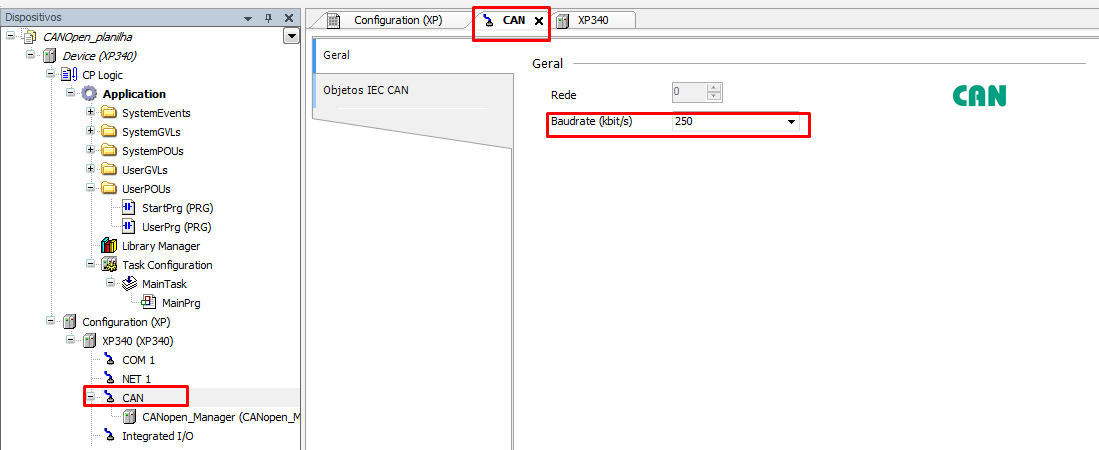

CAN protocol parameters can be configured by double-clicking on “CAN”.

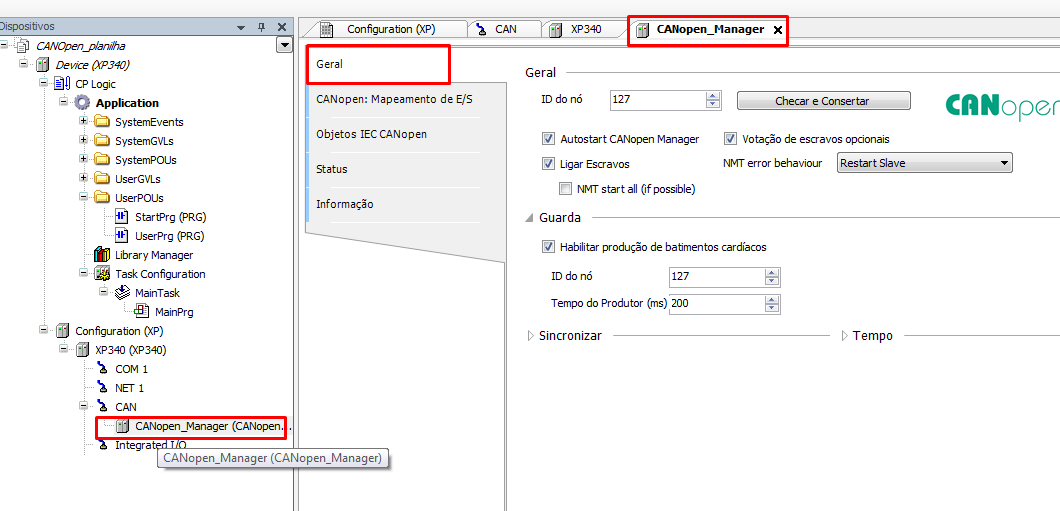

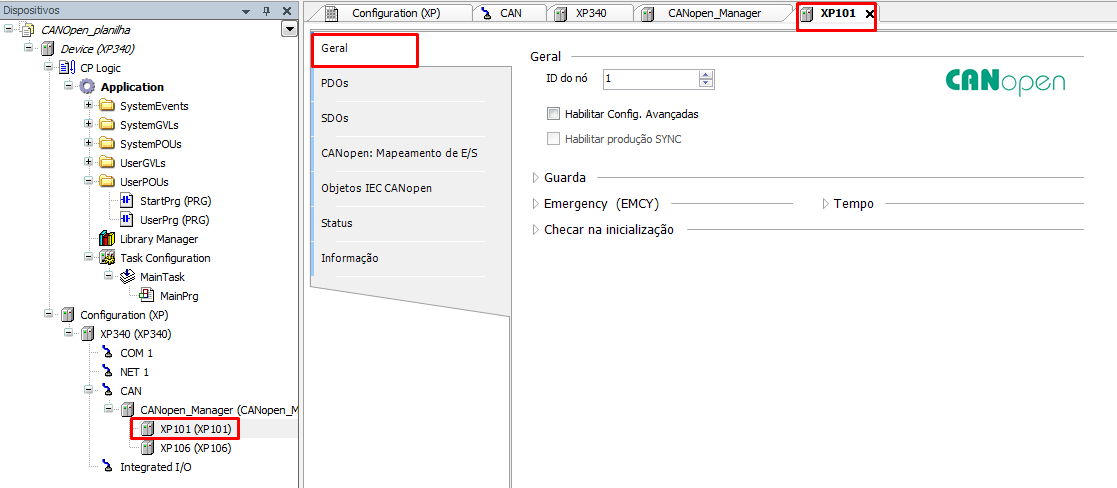

The same applies to the Manager and expansions, where a tab will open allowing parameter configuration.
IMPORTANT: For the producer times (Heartbeat) of the CANopen_Manager and slaves, use the same time defined for the Maintask cycle.
The DIP on the expansion modules must be configured manually, according to the node ID configured on each module and the CAN communication baud rate.
2.4. Changing digital inputs and outputs

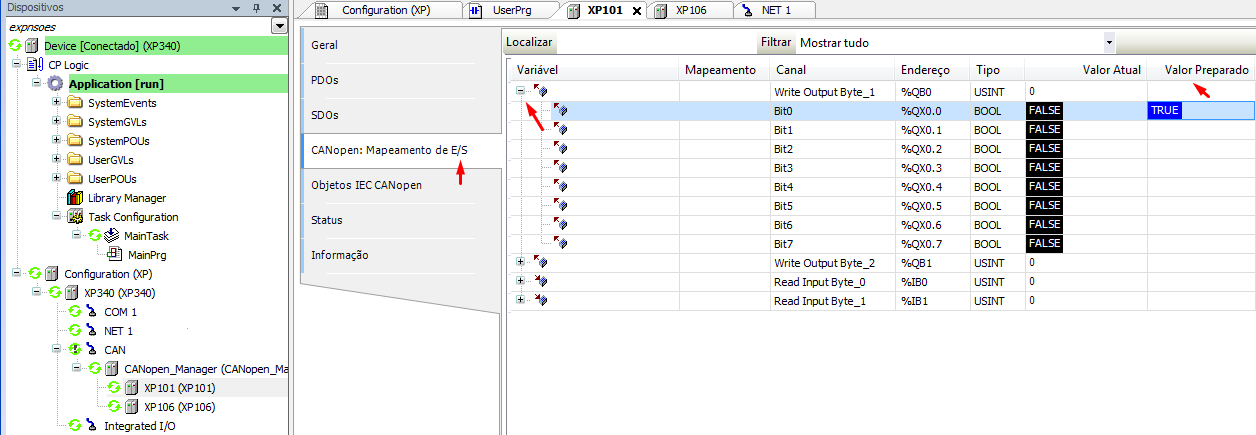

It is possible to change the state of the digital outputs and inputs of the expansion modules. To do this, go to the tab of the corresponding module and click on the Prepared Value column, on the specific output/input line. After TRUE appears, press Ctrl + F7, and then Yes.
