To convert an already created project, just follow the steps below.
It is only possible to convert projects between devices of the same family. Projects made in CPU Xpress can only be converted to other Xpress CPUs.
1st Open the project you want to convert in MasterTool, as an administrator.

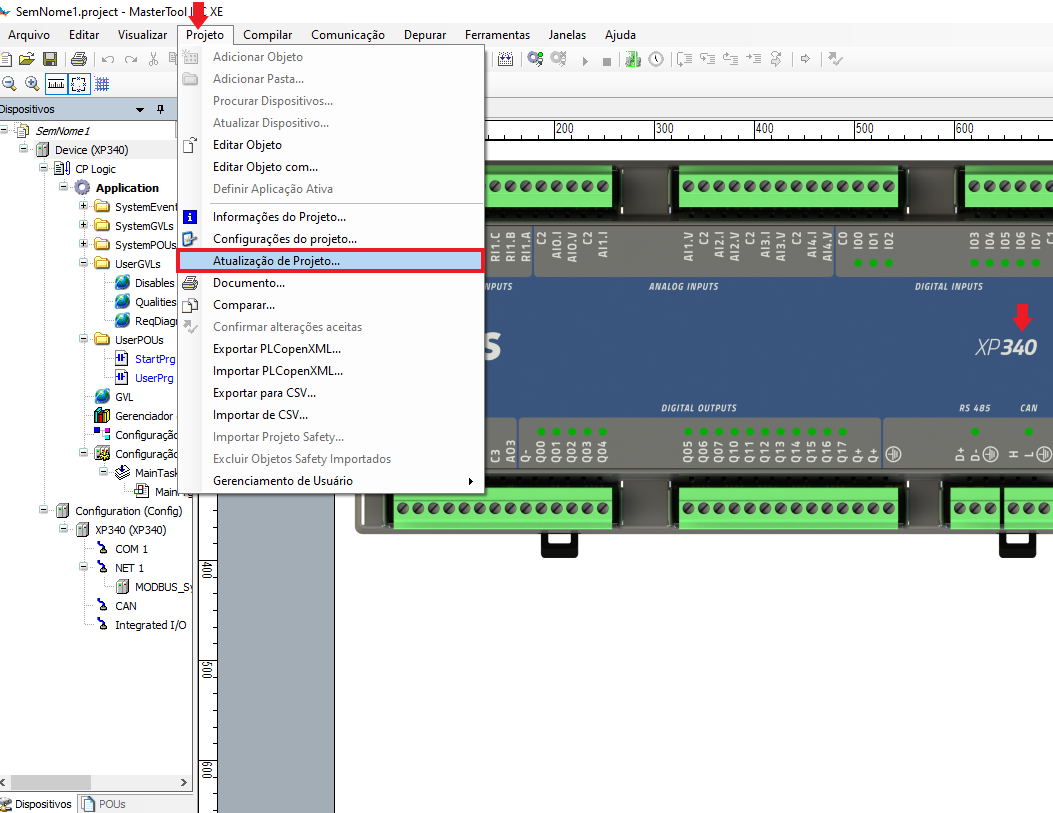

Click on Project >> Project Update
2nd In New project configuration, change to the CPU you want and click apply. It is also possible to modify the version of the software used.

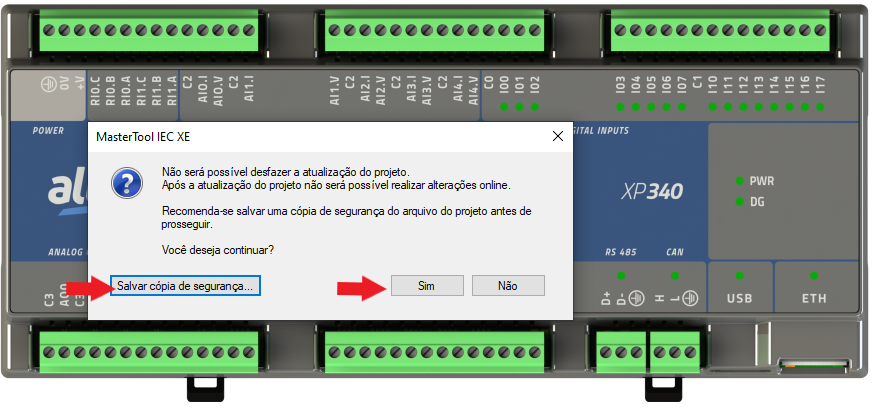

A confirmation window for the modification will appear. It is recommended to save a backup copy of your project, as the original project will be changed. Then continue by clicking “YES.”

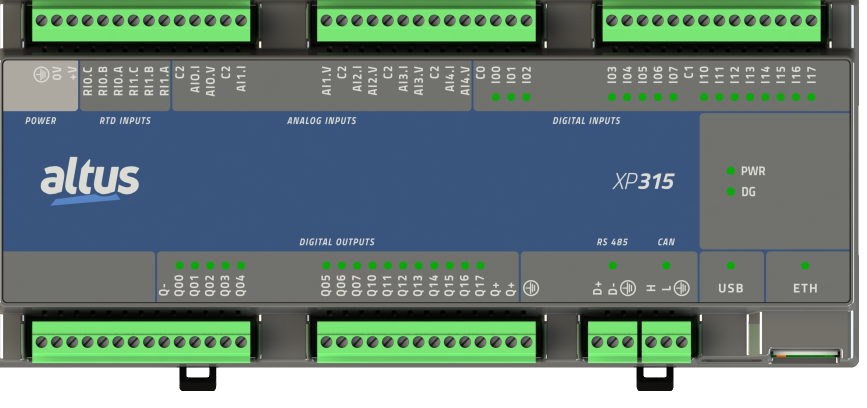

The project will be converted and after that the hardware shown in the project will change to the selected version.
Now the programming will be done for the CPU to which the project was converted.
