Nexto Xpress - Using the CTUD Counter

Article translated with the assistance of AI tools. Images and parts of the content will still be reviewed.

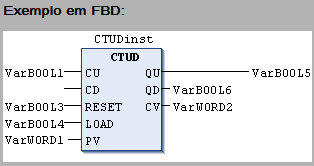

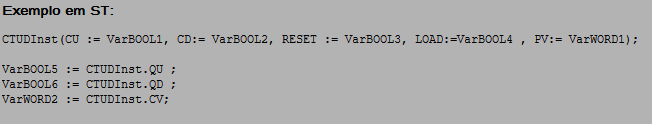

Functional block that acts as an incrementer and decrementer.

INPUTS

CU : BOOL; if a rising edge occurs at this input, the counter value (CV) is incremented by 1 until it reaches PV.

CD : BOOL; if a rising edge occurs at this input, the counter value (CV) is decremented by 1 until it reaches 0.

RESET : BOOL; if TRUE, CV will be reset to zero.

LOAD : BOOL; if TRUE, it will be set to the value of PV.

PV : WORD; upper limit for incrementing or decrementing CV.

ATTENTION: The WORD data type, used for PV in MasterTool IEC XE, does not correspond to the IEC standard, which specifies the INT data type for this.

OUTPUTS

QU : BOOL; returns TRUE when CV is incremented to a value >= PV.

QD : BOOL; returns TRUE when CV is decremented to 0.

CV : WORD; contains the value to be incremented or decremented; will be initialized to 0 if RESET is TRUE; will be increased by 1 whenever there is a rising edge from FALSE to TRUE on CU; will be decreased by 1 whenever there is a falling edge from TRUE to FALSE on CD, as long as the value is not less than 0.
