Nexto XF – #39 Creating a Global Variable List

The objective of this tutorial is to explain how to create a global variable list in a MasterTool X project.

Components

Equipment: 1 computer/notebook.

Software: MasterTool X

Tutorial Sections

1. ARCHITECTURE
2. DEVELOPMENT

1. ARCHITECTURE

A computer/notebook will be required to use MasterTool X.

Figure 1. Computer running MasterTool X

2. DEVELOPMENT

The GVL (Global Variable List) is used to declare global variables, that is, variables that can be accessed and used anywhere in the project, regardless of the POU (UserPrg, subroutines, functional blocks, or functions).

This feature is essential for sharing information between different logics, standardizing signals, and improving project organization.

Best Practices for Using GVLs

• Use GVLs for:
  • Shared signals
  • Global states
  • Configuration parameters
• Avoid unnecessary global variables
• Use clear and standardized names
• Separate GVLs by purpose as the project grows

Accessing the GVL creation location

To create a GVL in the project:

1. In the project tree, locate the UserGVLs item.
2. Right-click on UserGVLs.
3. Select the Add Object option.
4. Choose Global Variable List.

Optionally, you can create folders for organization, but in this example the GVL will be created directly in UserGVLs.

Creating the global variable list

After selecting Global Variable List:

1. Define a name for the GVL
   Example: gvl_signals, gvl_control, gvl_io
2. Confirm the creation.

The software will automatically open the global variable declaration field.

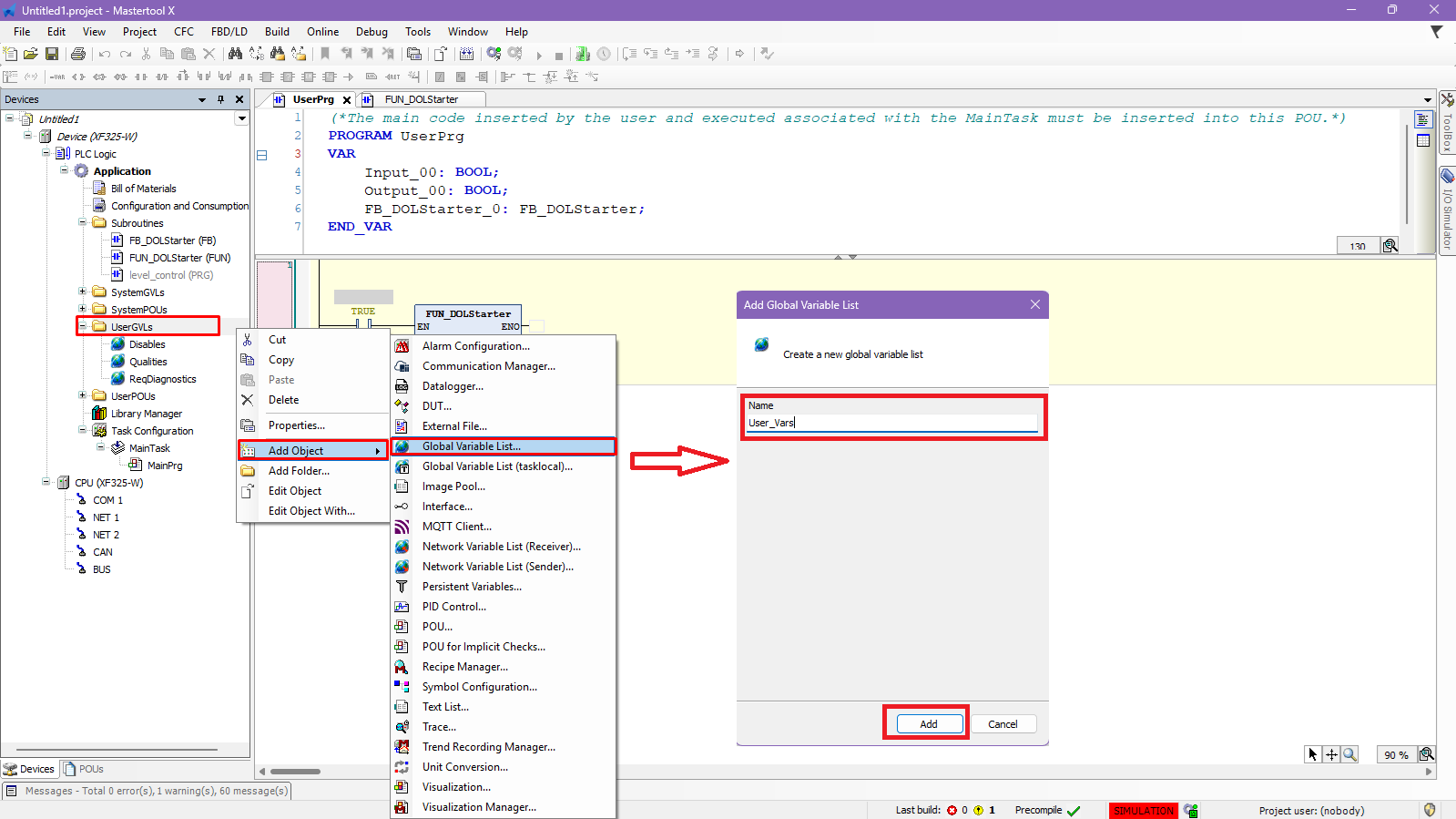

Figure 2. Creating a GVL

Declaration of global variables

Within the GVL, variables must be declared in the same way as local variables:

start_button : BOOL;
tank_level : INT;
alarm_level : BOOL;

All variables declared in this list become global, meaning:

• They do not need to be redeclared in other POUs
• They can be used directly in any project logic

Difference between global and local variables

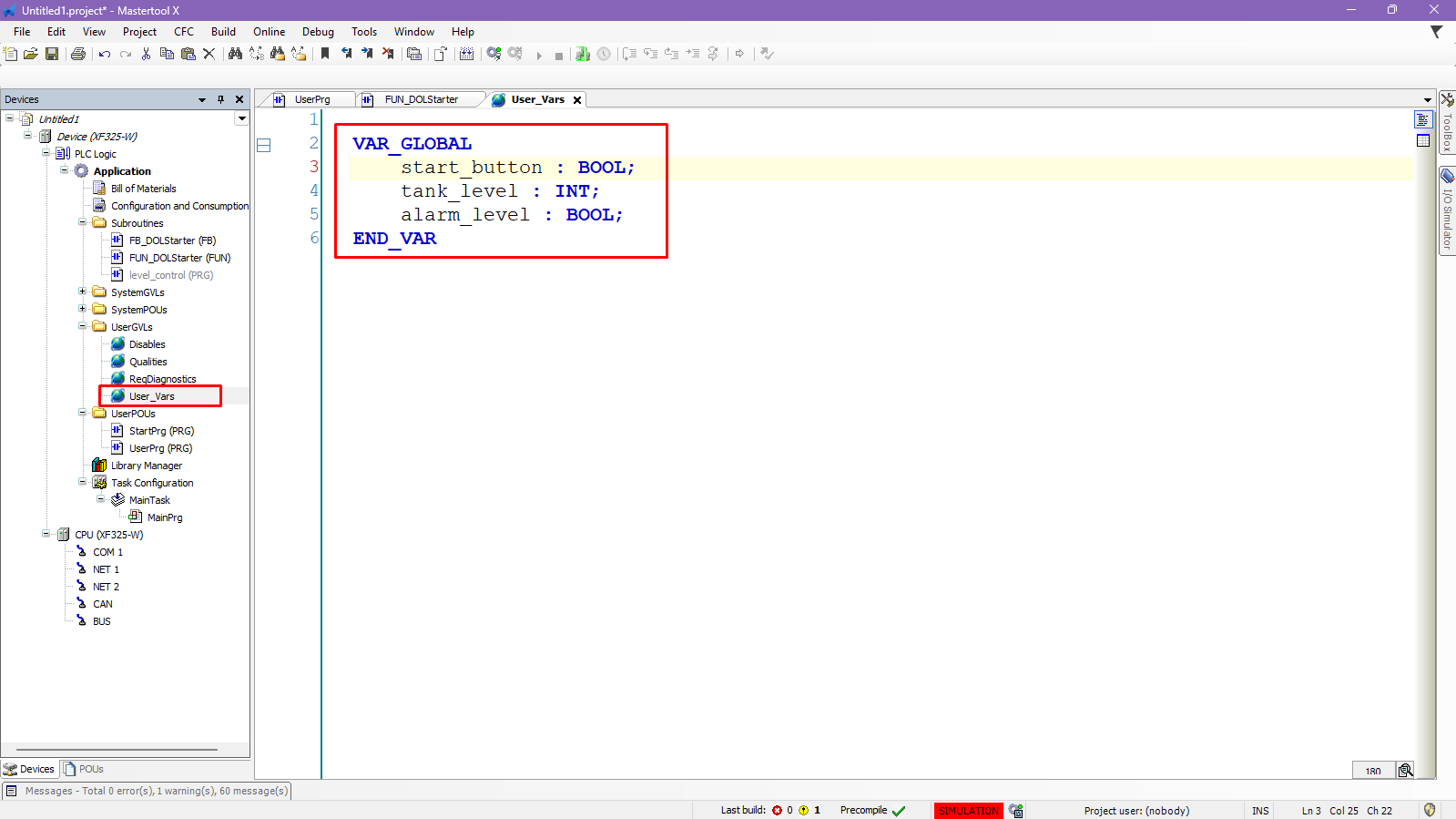

Figure 3. Creation of global variables

Use of global variables in the project

After creation, GVL variables can be:

• Used in UserPrg
• Used in subroutines
• Used in functional blocks
• Used in functions
• Associated with inputs and outputs
• Monitored and enforced during simulation

Simply reference the variable name normally in the logic.

The GVL (Global Variable List) is a fundamental tool for organizing and sharing data in the project, allowing different parts of the application to communicate clearly, in a standardized and efficient way.

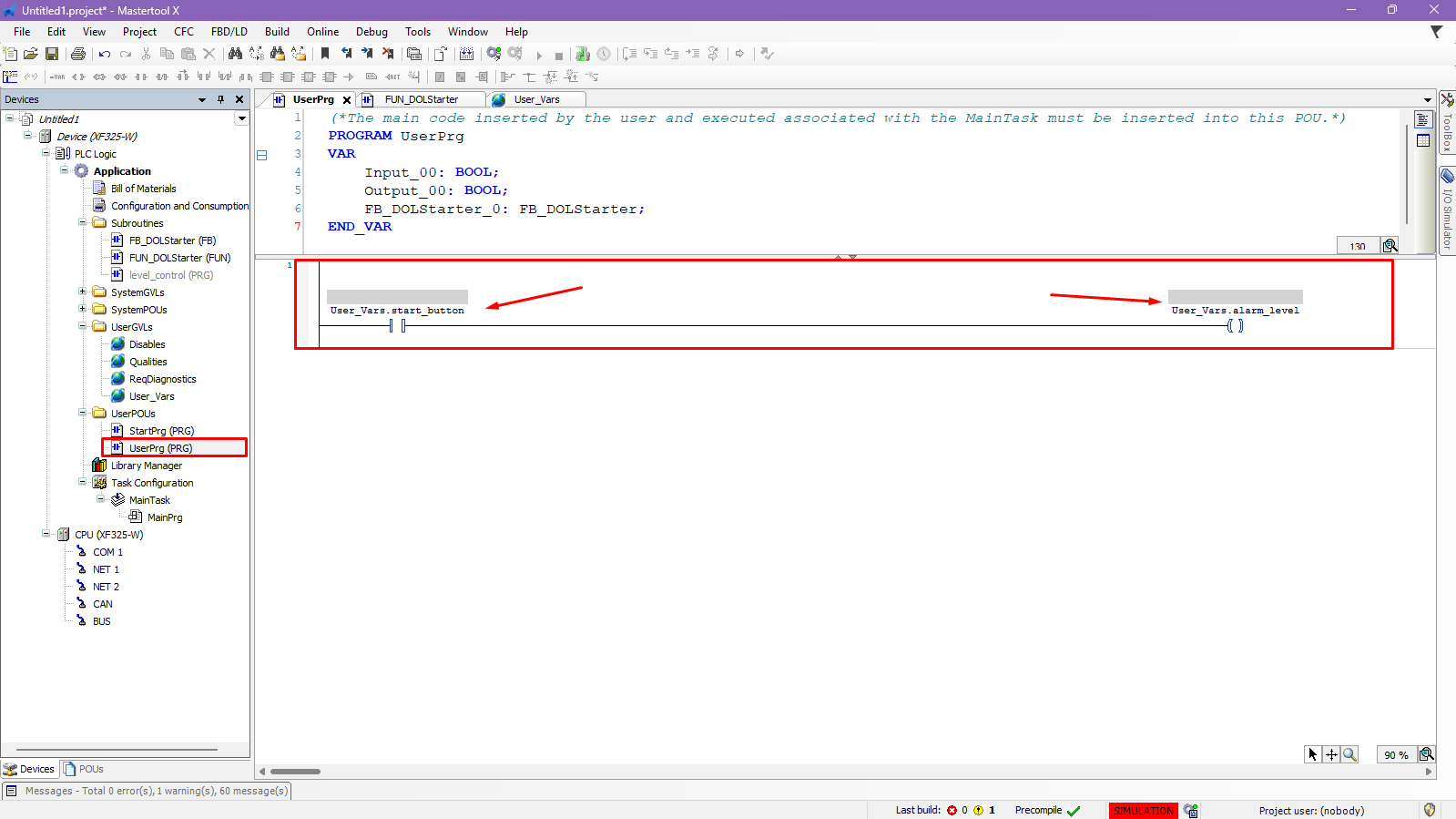

Figure 4. Calling global variables via UserPrg
