Nexto XF #02 – Creating a Project

This tutorial will show the procedure for creating a new project with NEXTO XF.

Components

Equipment: 1 computer/laptop.

Tutorial Sections

1. ARCHITECTURE
2. DEVELOPMENT

1. ARCHITECTURE

A computer/laptop will be required to use Mastertool X.

Figure 1. Computer running Mastertool X

2. DEVELOPMENT

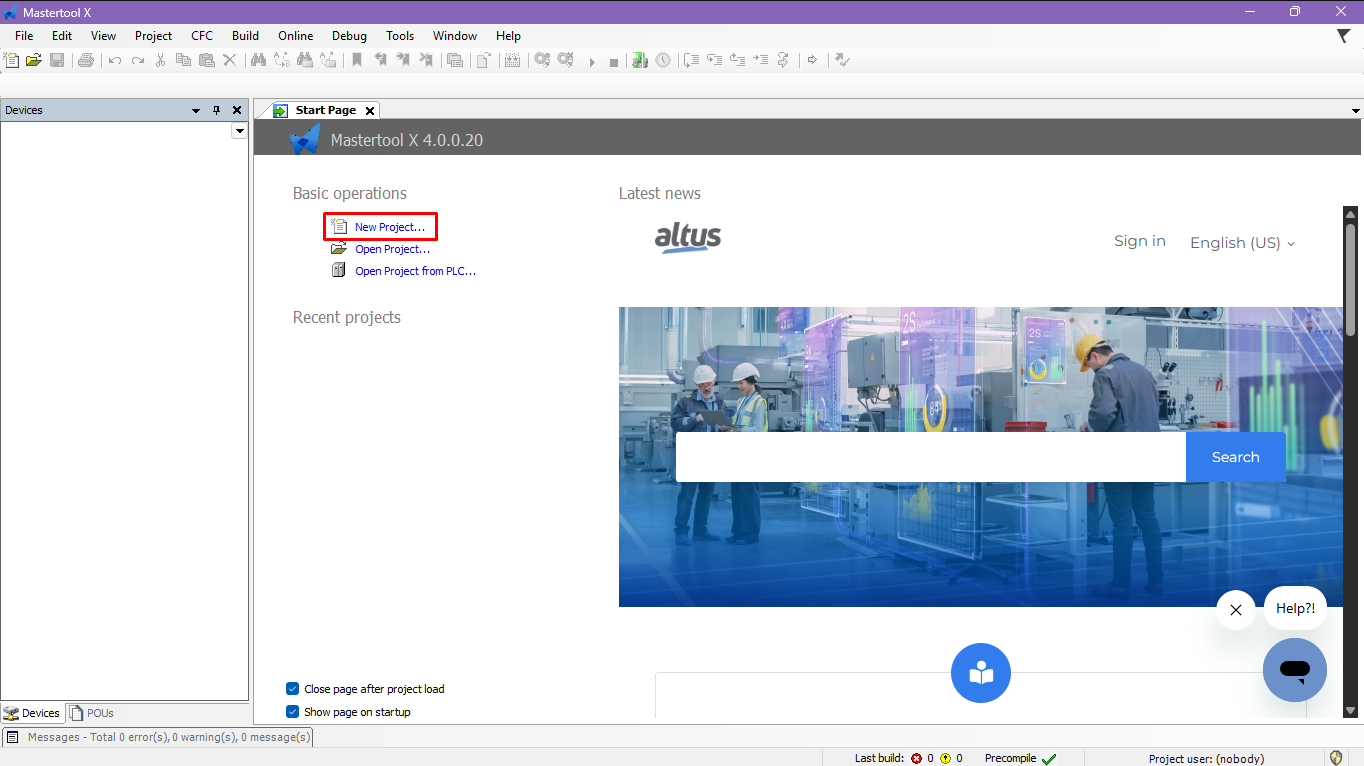

After opening Mastertool X, click on New Project.

Figure 2. New Project...

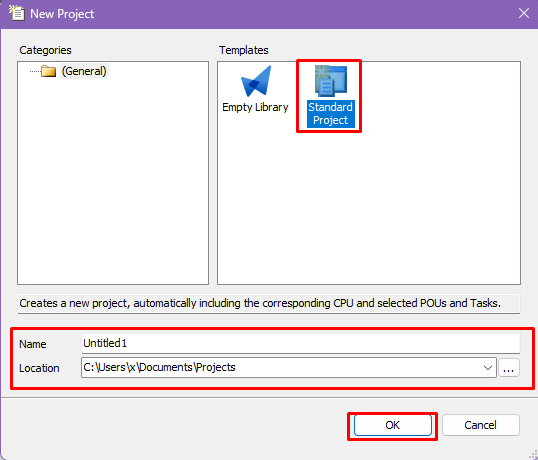

Next, you need to choose the Standard Project mode, enter a project name, and select a directory where the project will be saved. After that, click OK.

Figure 3. Project mode, name, and directory

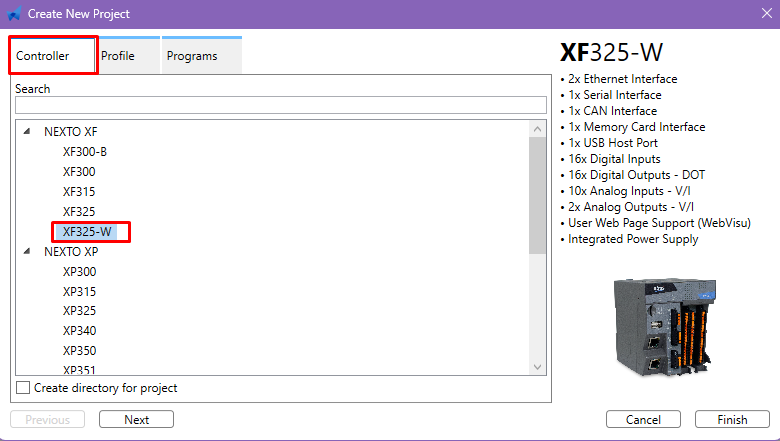

Then you need to select the device model for the Project. This is done in the Controller tab; when selecting the device model, its characteristics will appear on the right side of the window.

Figure 4. Device selection

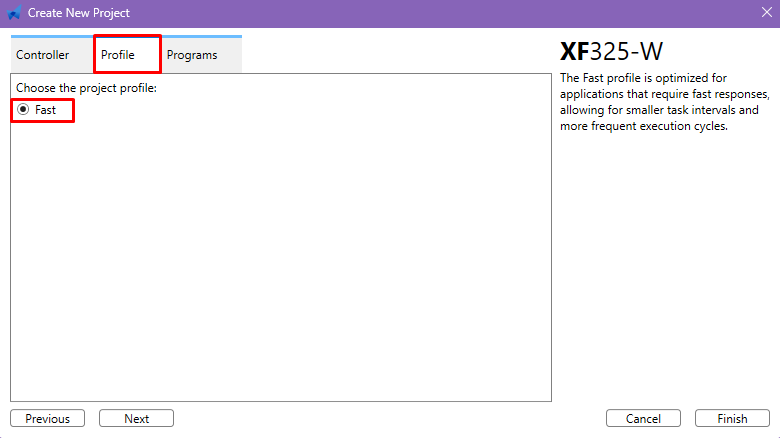

In the Profile tab, the project profile is selected.

Figure 5. Project profile selection

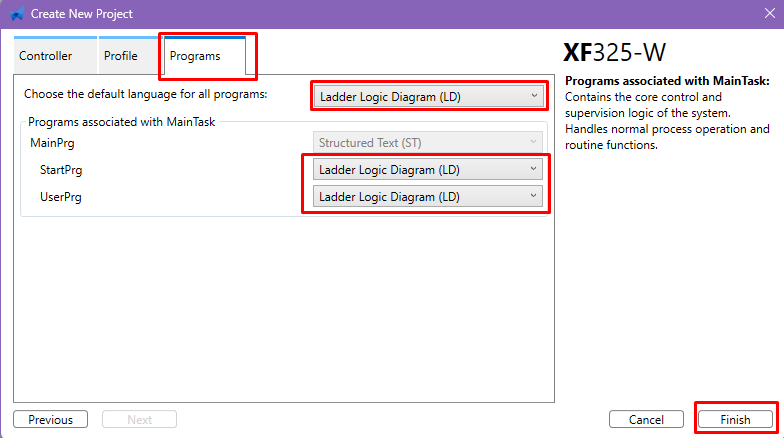

And finally, in the Programs tab, the programming language is chosen.

Figure 6. Project programming language selection

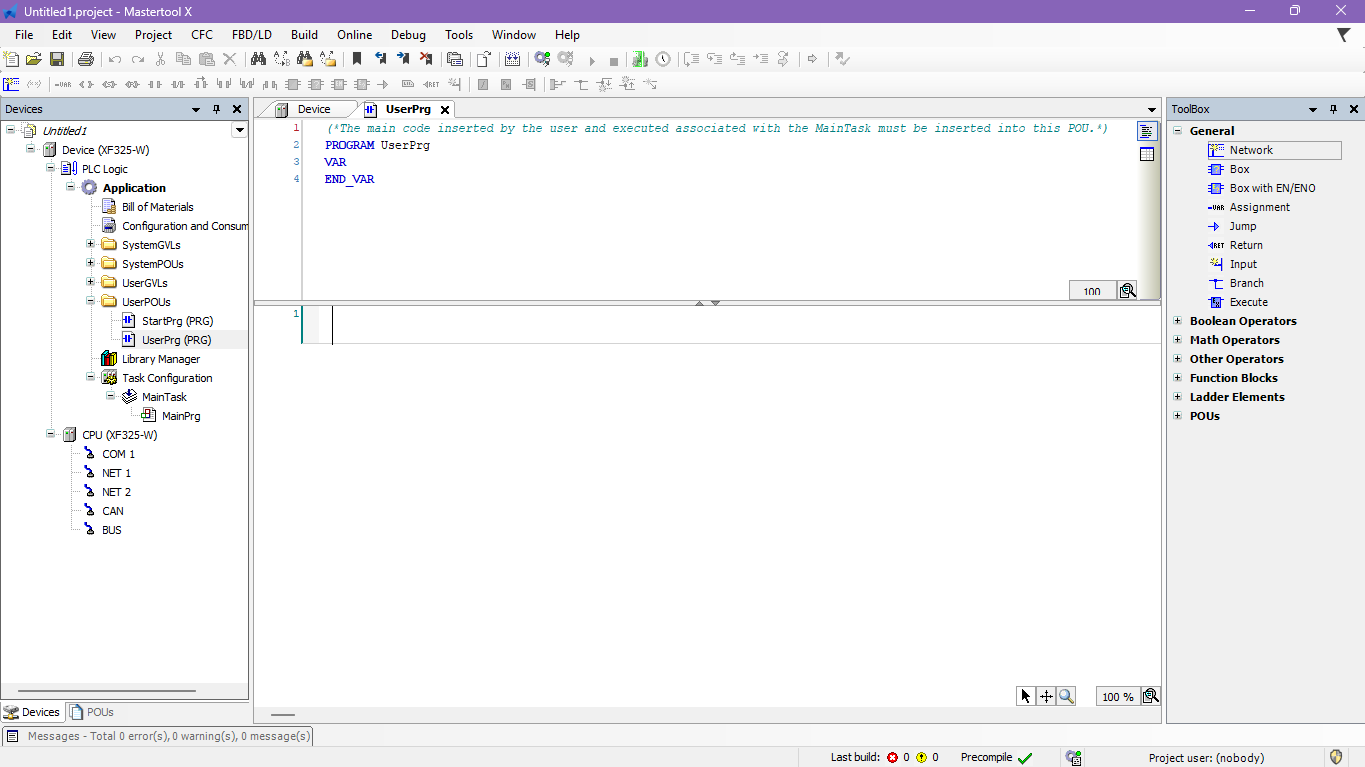

After the options are selected, you need to click Finish to load the project.

Figure 7. Loaded project
