Nexto XF – #14 Seal with Multiple Parallel Contacts

The objective of this tutorial is to create the logic for a seal with multiple parallel contacts and the movement of existing contacts in a MasterTool X project.

Components
Equipment: 1 computer/notebook.

Software: MasterTool X

Tutorial Sections

1. ARCHITECTURE
2. DEVELOPMENT

1. ARCHITECTURE

A computer/notebook will be required to use MasterTool X.

Figure 1. Computer running MasterTool X

2. DEVELOPMENT

In more complex applications, it is common to use a seal logic with multiple parallel contacts, allowing different conditions to keep the same output activated. MasterTool IEC XE offers features that facilitate both the insertion of parallel contacts in relation to various objects and the reorganization of already created logic.

Inserting Multiple Parallel Contacts

To add a parallel contact in relation to more than one existing object in the logic, follow the procedure below:

1. Select the first contact or block in the logic.
2. While holding down the Ctrl key, click on the other contacts or blocks that will be part of the same parallel branch.
3. After selecting all the desired objects:
   • Click on the top menu and select Insert Parallel Contact Below
   • Right-click on the selection and choose Insert Parallel Contact Below.

The inserted contact will be created in parallel to all selected objects, forming a multiple branch of the logic.

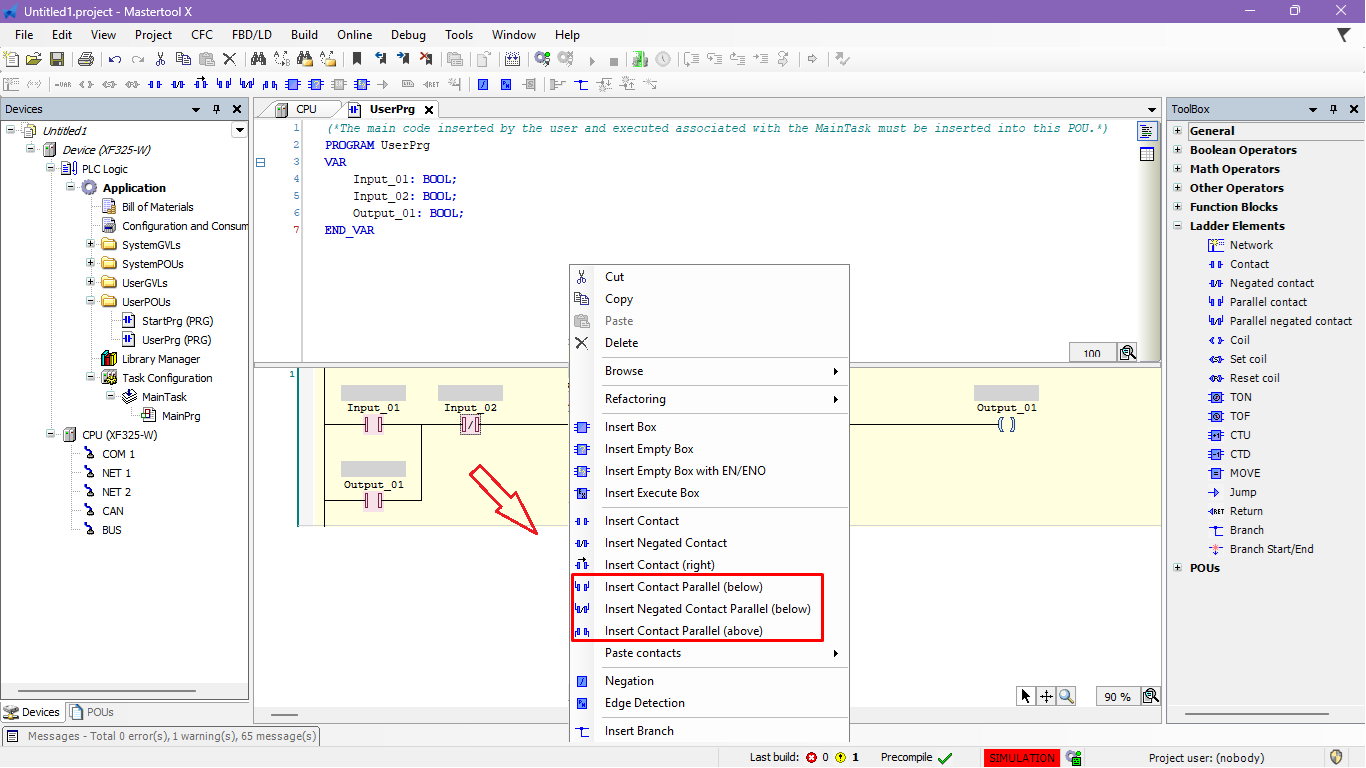

Figure 2. Inserting a parallel contact in relation to more than one object

Moving Contacts and Blocks in the Logic

MasterTool IEC XE also allows you to reorganize the logic in a simple way, without the need to delete and recreate elements.

To move an existing contact or block:

1. Click to select the desired contact or block.
2. Drag the element to the new position in the logic.
3. During the dragging process, the software will display visual indicators, showing the valid points where the item can be positioned.

When you release the element, it will automatically adjust to the new position, maintaining the integrity of the Ladder logic.

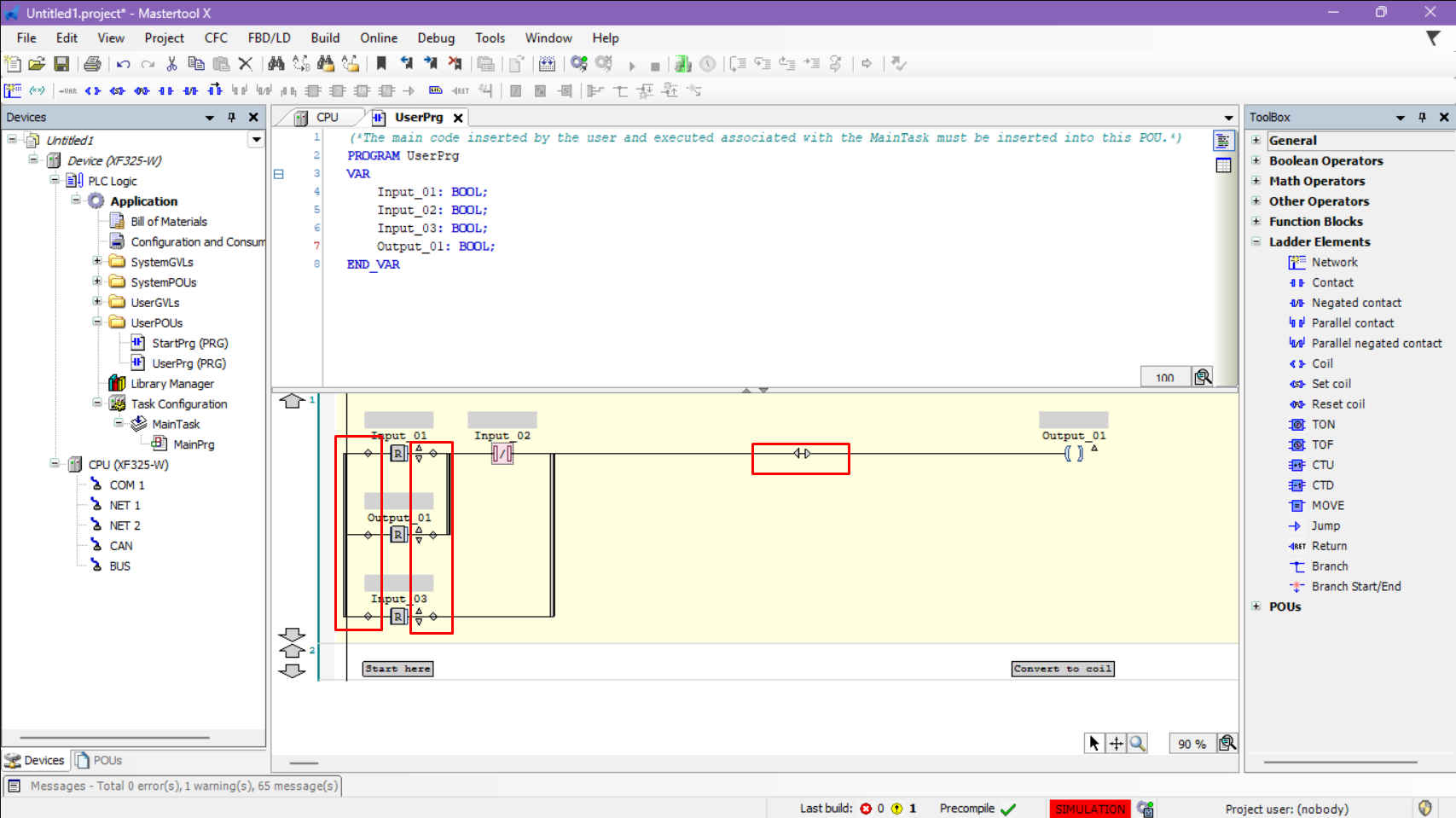

Figure 3. Object movement in the project logic
